Multi-Threaded HTTP Server in C

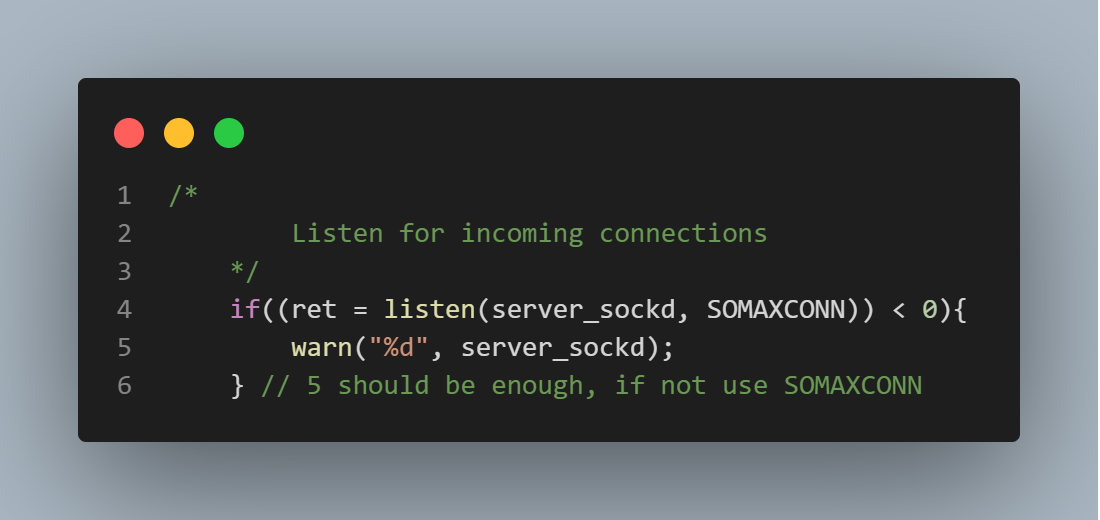

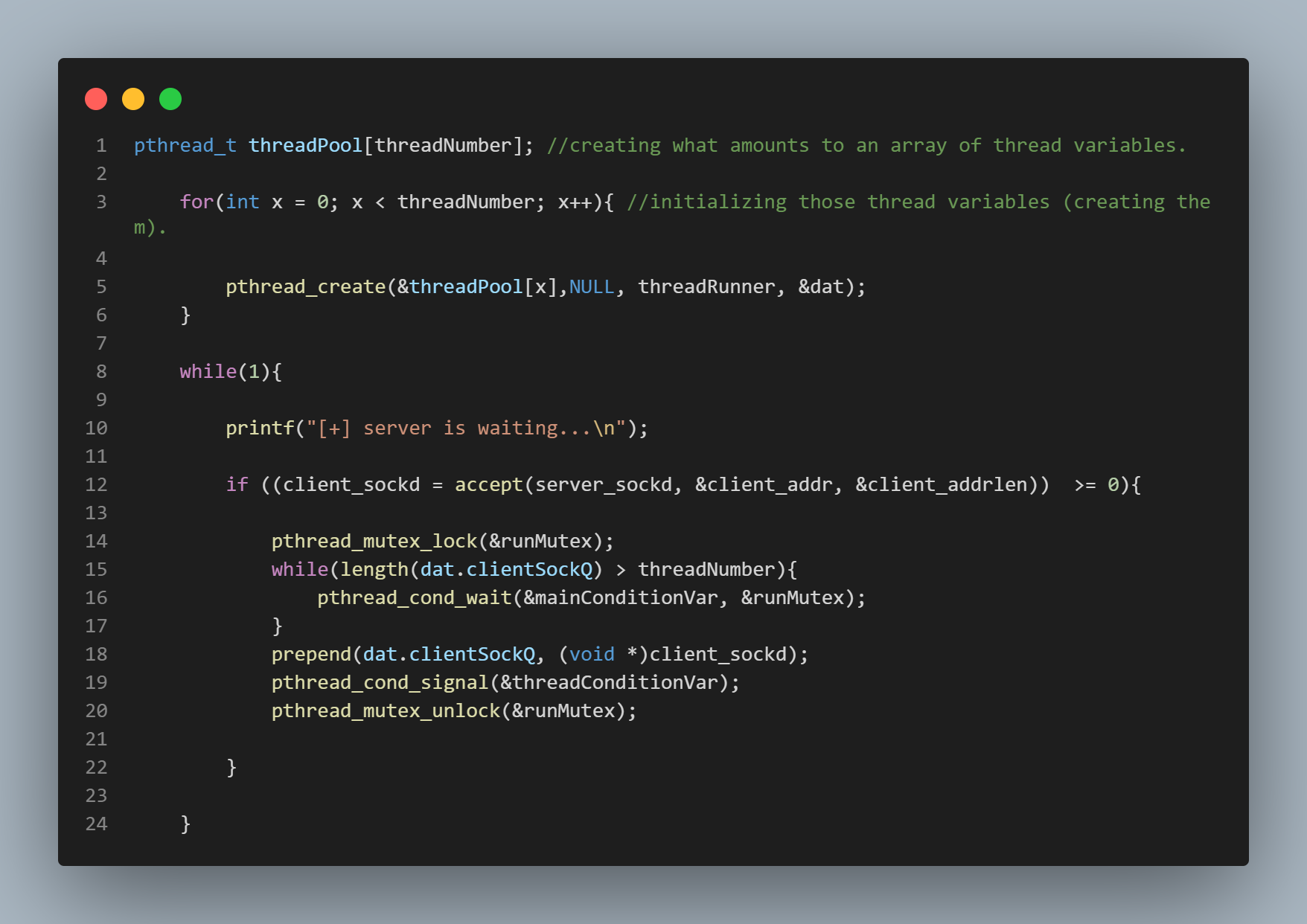

The "producer-consumer dynamic" simply refers to the concept of one block of code "producing" work for another block of code to "consume". In this case, the "producer" code represents the server's main thread, and the "consumer" code represents the server's worker threads. The top pic is of the "producer" code, and the bottom pic is of the "consumer" code. The "clientSockQ" is just a doubly linked list being used as a queue. The queue takes requests in the form of socket descriptors. In the producer block, a client request is only prepended (enqueued) to the queue if there are less items in the queue than there are threads to service requests because if there are more items in the queue than there are threads to service requests, it must mean that all the threads are busy servicing other requests, and so any incoming requests must be for forced to wait (or enqueue) at a variable defined in the main function called "ret" (which can be seen in the top-most picture) which represents the listening point for the server. Because the "clientSockQ" is a shared resource, meaning it is available and visible to all server threads, any accessing of this resource must be enclosed within an "atomic" code block, meaning that access to this code block becomes restricted to one thread at a time. By a similar principle, in the consumer block, threads are only active if there is work to be performed, (requests to be serviced), meaning if there are descriptors in the clientSockQ. If there are no items in the queue, it must mean there are no requests to be serviced, and so the worker threads lie dormant on the conditional wait variable.

• View the full file

Parsing the HTTP header was definitely a more daunting task than initially expected. The header is of course the portion of data that the server receives that prefaces the actual file data (if the request were a write request, that is). It is always terminated by a double new line - carriage return ("\r\n\r\n") and has a very specific structure, one of any number of headers, there are requirements for the sub-headers that must be included in the overall header depending on what type of request is being parsed (PUT, GET, etc). For example, if the request is a "PUT" (write) request, there must be a "Content-Length" header specifying the length of the incoming message body or file. As mentioned, the header has a format that must be adhered to. This format is one of "Key-Value". For example, take the "Content-Length" header. If the incoming file had content length 67 bytes, the "Content-Length" header would look like the following:

"Content-Length: 67"

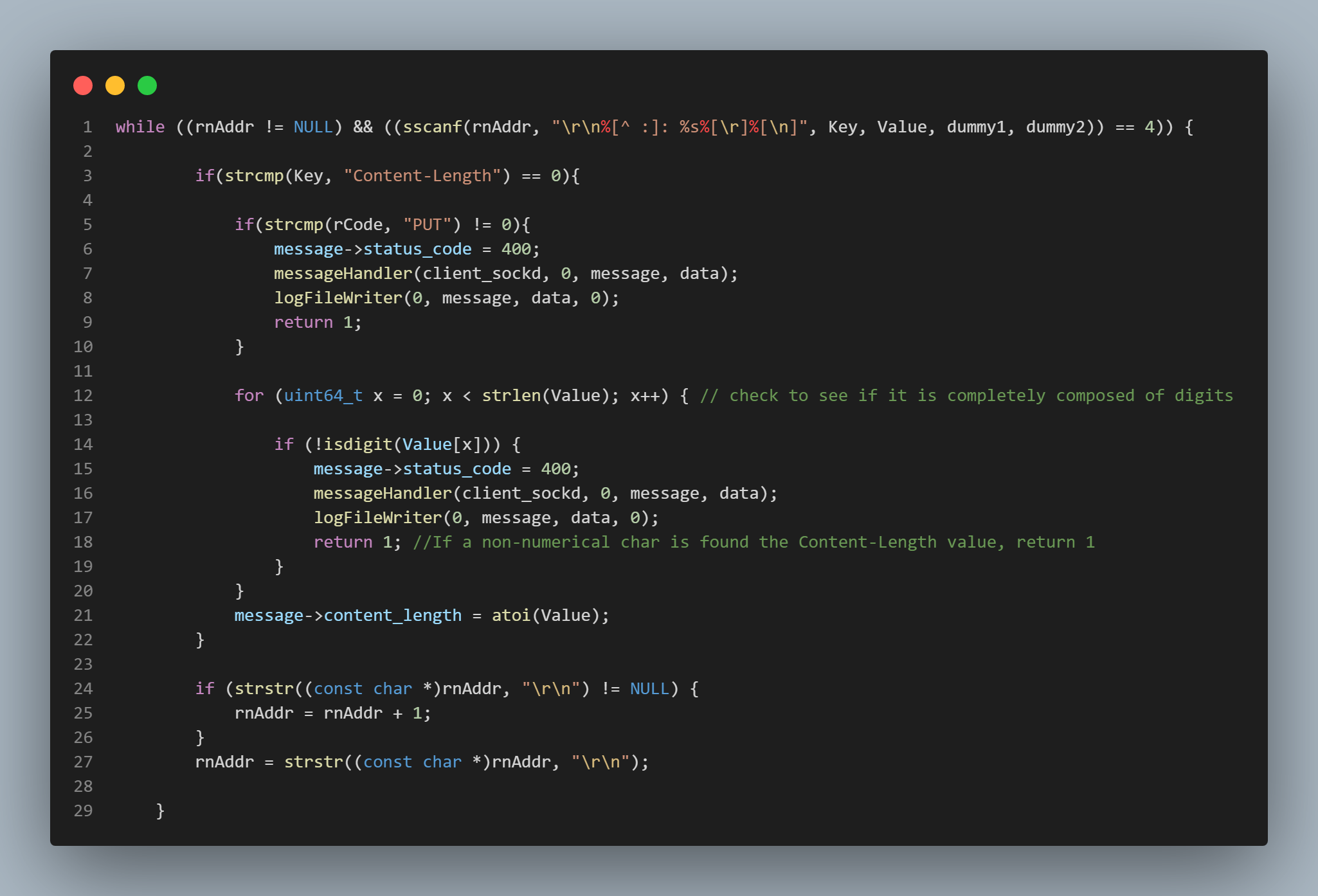

So, our task in "parsing the header" is really to incrementally make our way through the entire header, checking it not only for structural deformities, but also for the presence of particular sub-headers that should be accounted for given the type of request (PUT, GET, etc). To accomplish this, a regular expression pattern was used that was constructed based on the known format of the HTTP header. This is depicted on line 1 in the picture to the right.

• View the full file

When implementing a multi-threaded HTTP server, it is entirely possible that two threads may attempt to access the same file at the same time, because it is entirely possible that two different clients may request access to the same file at the same time. Well what happens if both clients are trying to write to the same file at the same time? If we don't implement some method of preventing this, we will end up with utter chaos inside the file. If one client is trying to read from a file that another client is concurrently trying to write to, our server will suffer from a host of problems from potential buffer smashing to simply not having a concrete method of determining the "current" form of the file.

We need to use mutex locks here in order to, as with the producer-consumer dynamic, enclose any access to a shared resource (all files stored on the server represent shared resources) within an "atomic" code block, meaning that access to this block is restricted to a single thread at a time. However, we don't want to effectively turn our multi-threaded server into a single threaded server by forcing every thread attempting to access any file to wait until the thread ahead of it is finished with its file access, so how do we implement this? Well, we only want a thread to wait if it is attempting to access a file that is currently being accessed, and then only if the form of access presents a potential race condition. So if thread "a" is currently writing to file "x", and along comes thread "b" that wants to read from file "x", we want thread "b" to wait for thread "a" to finish. However, if thread "a" is reading from file "x" and along comes thread "b" that wants to also read from file "x", this doesn't present a potential race condition, so we don't care. It's perfectly fine to let both thread "a" and thread "b" read from file "x" simultaneously. Also, if thread "a" is writing to file "x" and along comes thread "b" that wants to read from or write to file "y", this is perfectly fine as well. This doesn't present a potential race condition because there are two different files being accessed in this situation.

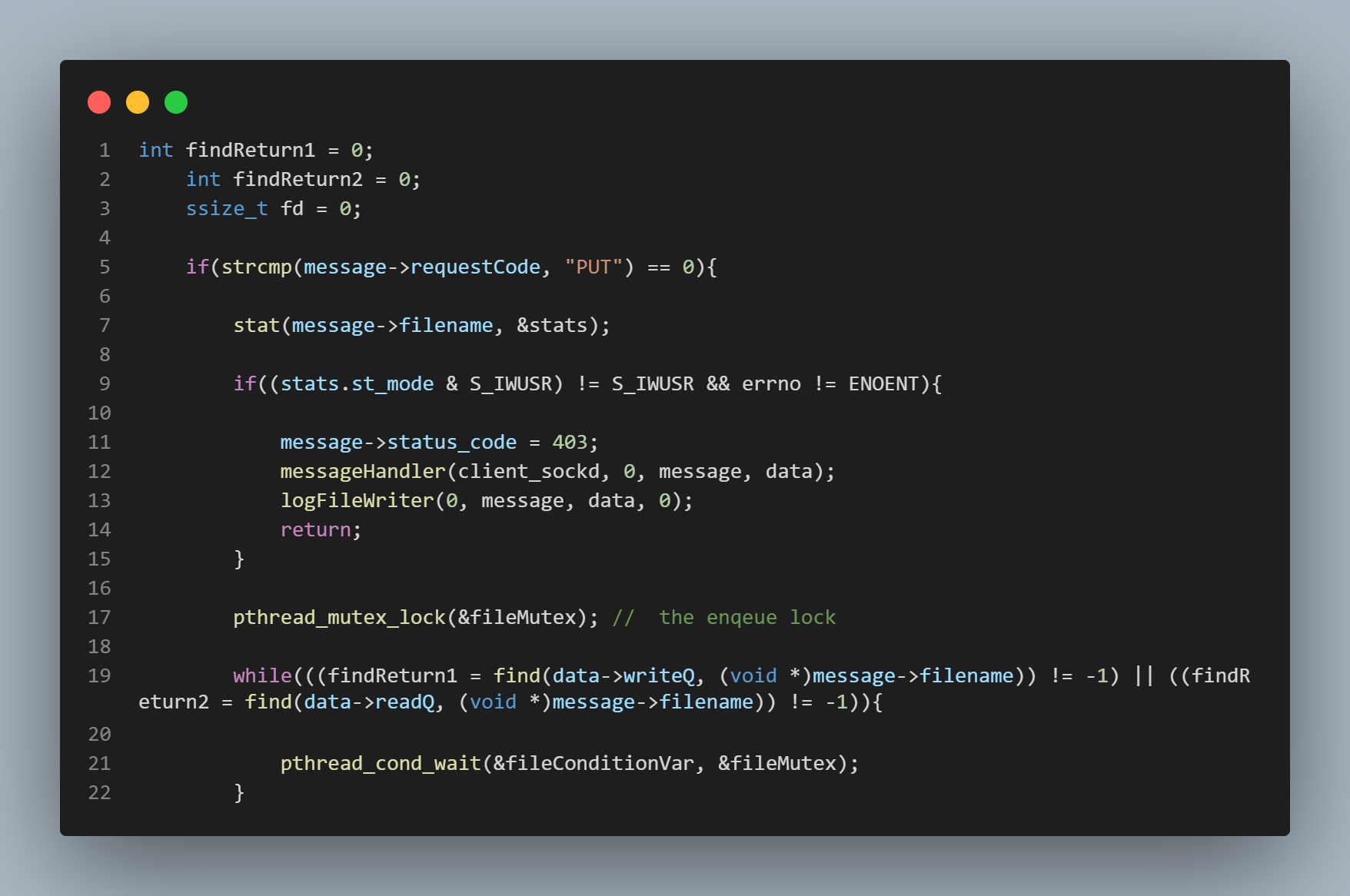

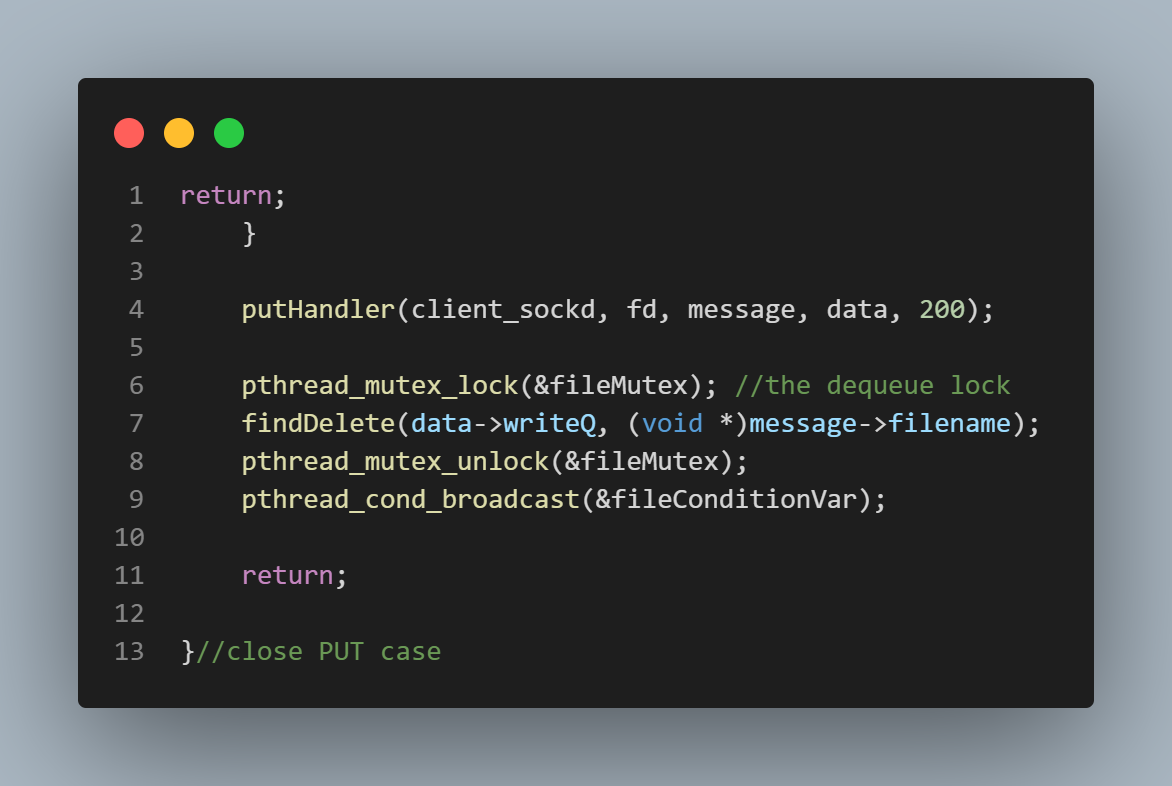

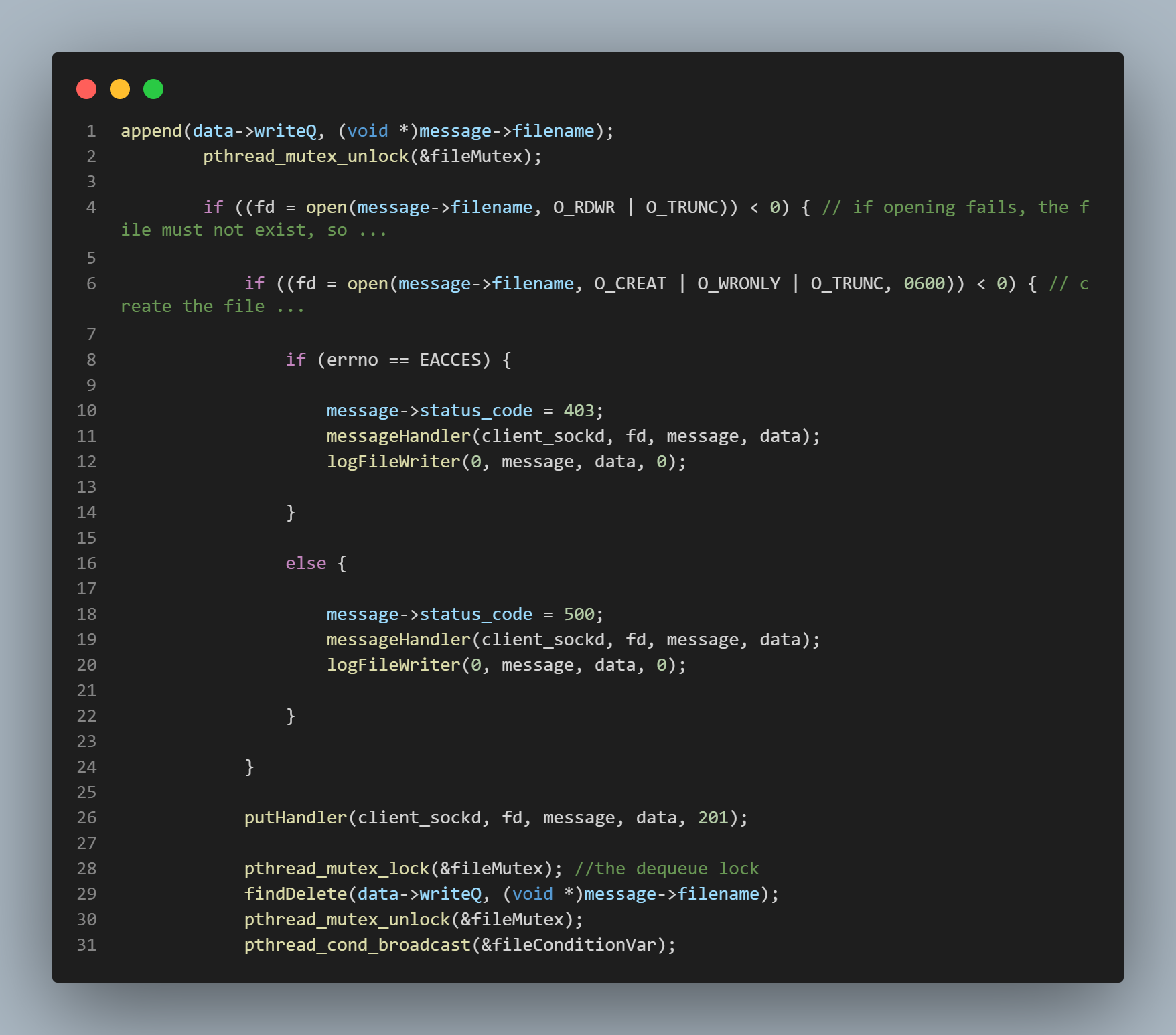

In the pictures to the left of this text, the PUT case (the case in which clients are trying to write to a file) is being handled. In lines 7 - 15 in the topmost picture, file permissions are being checked. As long as the file's permission status permits access, the next step will be taken, which is to begin the "enqueue" code block. The lock is set, and the while loop's conditional statement is checked. The while loop's conditional statement simply checks the contents of two different linked lists the purpose of which are to store the file names of files currently being accessed by other threads. One linked list stores the names of files being written to, and one stores the names of files being read from. The while loop's conditional statement checks the contents of both of these lists for the name of the file that the thread is attempting to access because this is the PUT (write) case being handled which means we must force the thread to wait if the file it wants to write to is currently being written to OR if it is currently being read from. If the name of the file is found in either of these lists, the thread is forced to wait on the conditional wait variable. Once a thread finishes with its operations upon a file, a signal is sent to the conditional wait variable that allows the thread waiting above in the "enqueue" block to check the while loop's conditional statement again. This signal is sent from either line 31 in the second pic from the top, or from line 9 in the bottom most pic. Eventually, a waiting thread will get its chance to "stake its claim" on the file it wants to write to. It does this by finally getting past the while loop and "appending" the name of the file to the linked list that stores the names of files currently being written to. This happens on line 1 of the second pic from the top. Once this happens, the thread gets the file all to itself until it's done with its operations. Once it's finished, it relinquishes its "claim" on the file by removing the file name from the "currently being written to" list. This happens on either line 29 of the second pic from the top, or on line 7 of the bottom-most pic.

• View the full file
