Multi-Threaded HTTP Server Load Balancer
in C

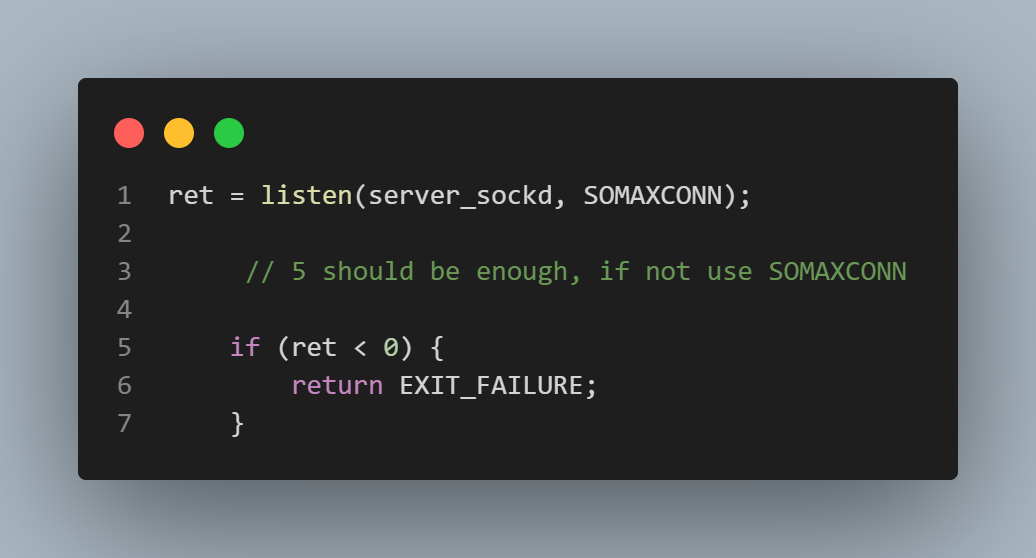

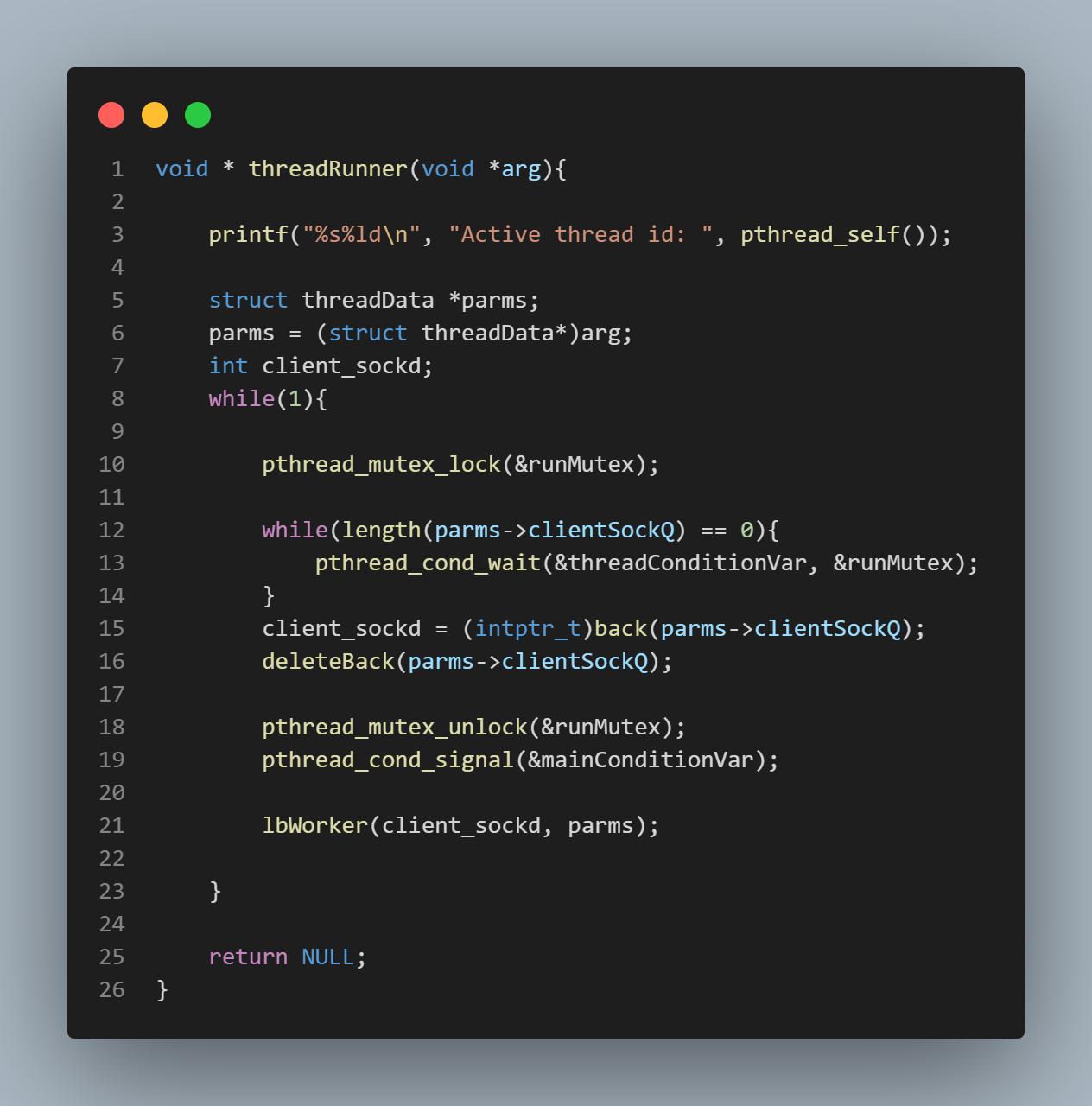

If you've already taken a look at my Multi-Threaded HTTP Server in C, you've seen this before. Since the load balancer is essentially doing the same thing (initially) as the servers themselves, the logic is the same here. Each load balancer worker thread waits for work to be enqueued, and the worker threads lie dormant if there is no work to handle (no requests enqueued to the clientSockQ). By the same token, the main thread lies dormant if all of the worker threads are occupied handling requests. In this case, the main thread will not enqueue any additional requests to the clientSockQ, and will instead allow the requests to "pile up" or enqueue on the "ret" variable. There is of course a difference between the logic here and the logic of the Multi-Threaded HTTP Server; and that is the inclusion of the "health check" functionality. This I will cover in the next section.

• View the full file

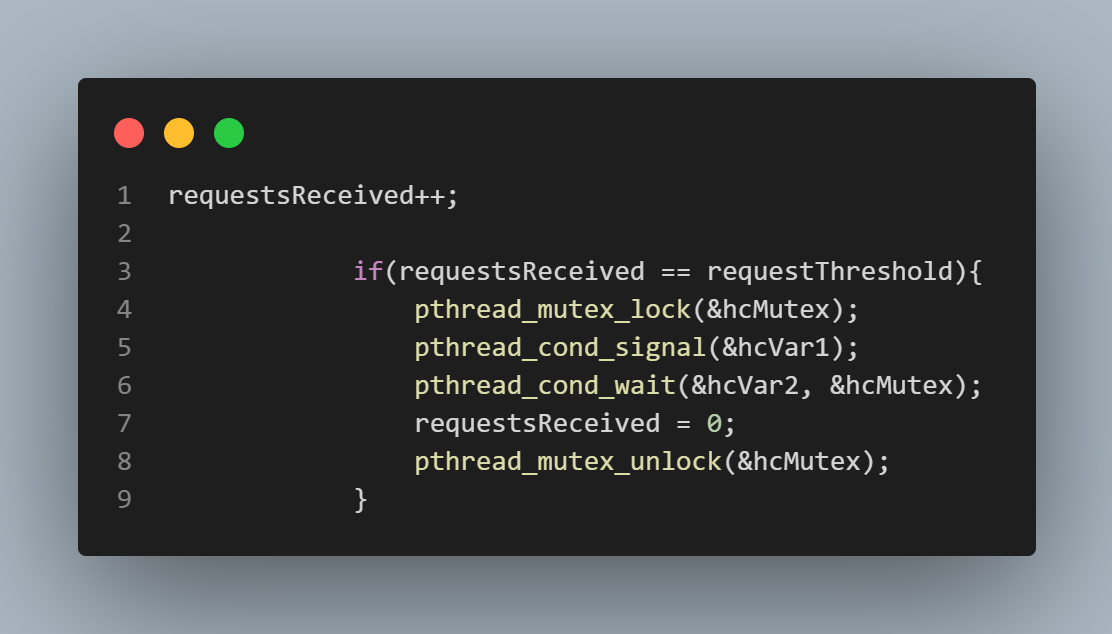

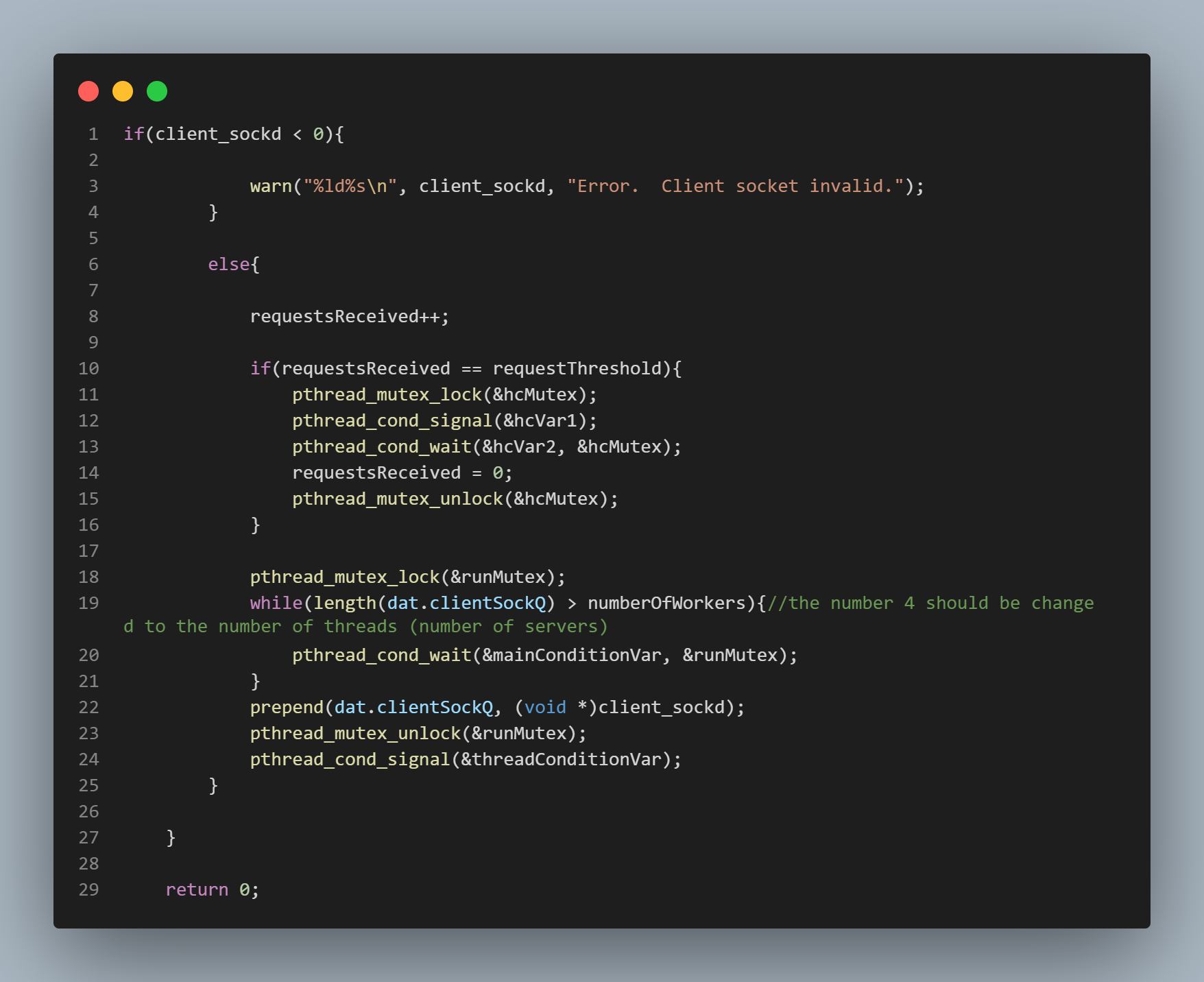

The top-most picture to the right is a sub-section of the 'Producer' code from the previous section. The 'Producer', i.e., the main thread, keeps track of how many requests it has received. The main thread is also supplied with a threshold value it gets from the user via command line argument (if no command line argument is supplied by the user, the threshold value defaults to 5). If this threshold value is reached, a health check is triggered. The health check function sends a threaded health check request to each active server, and the servers return the total number of requests they have received over the number of unsuccessfully serviced requests (an unsuccessful servicing of a request simply means a request to which a response in the 400's or 500's was returned). The "total number of requests" value that is returned by the server is used by the load balancer to determine which server is designated as the "least loaded". After the health check is triggered, the 'requestsReceived' variable is set back to 0, of course.

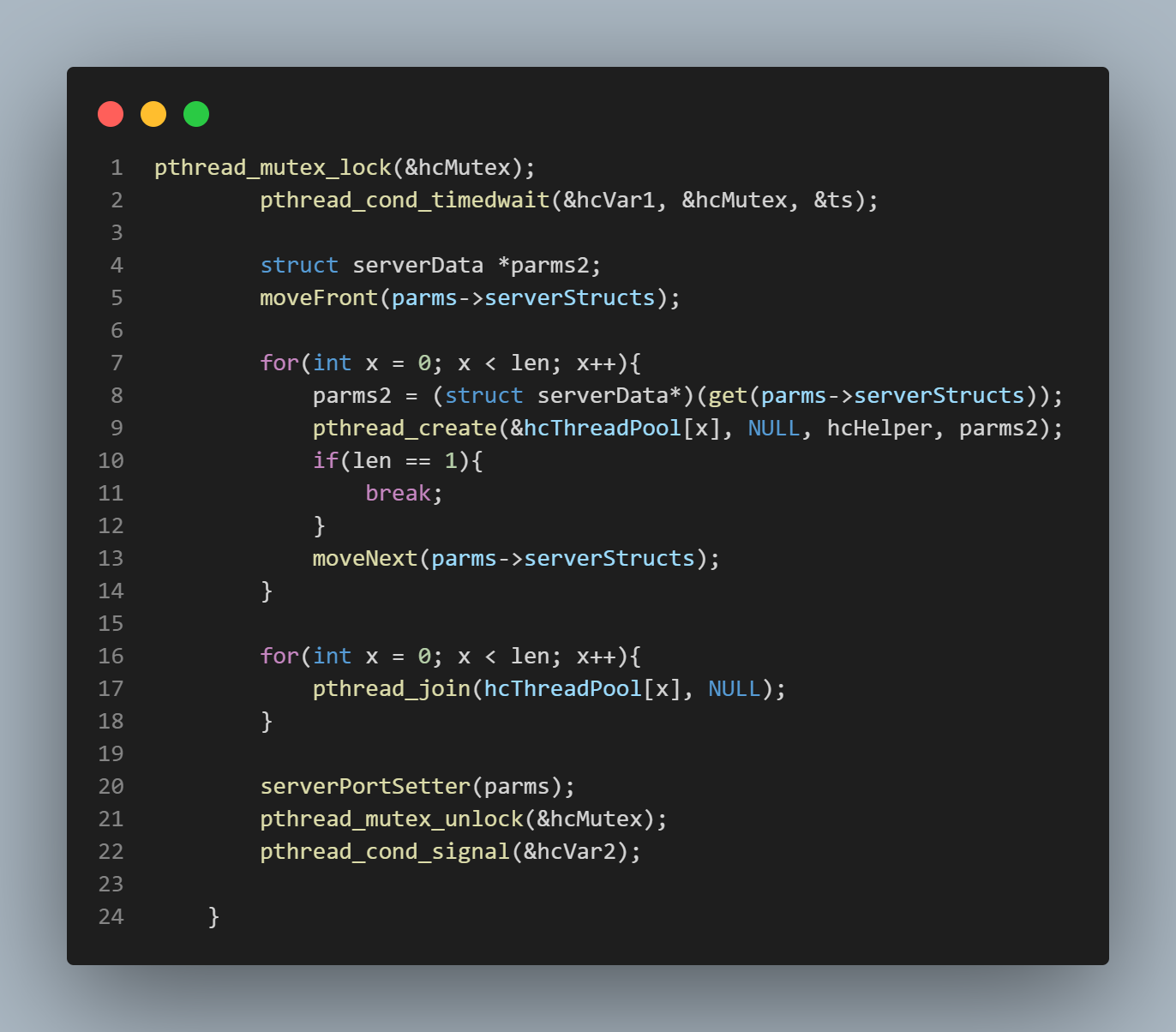

The bottom picture is of the health function itself. This is the function that actually sends the health check requests to the servers once the threshold is reached. When the threshold is reached, a signal is sent from the main thread to the health check function's "hcVar1" conditional wait variable which allows the health check function to send its threads out to collect their responses from the servers (the health check is itself threaded). Each thread is initialized with its own server struct for maintaining its data set as well as the function that will conduct the actual request sending and receiving. The function representing each thread's operations is called the 'hcHelper' function. I will cover the 'hcHelper' function in the next section.

• View the full file

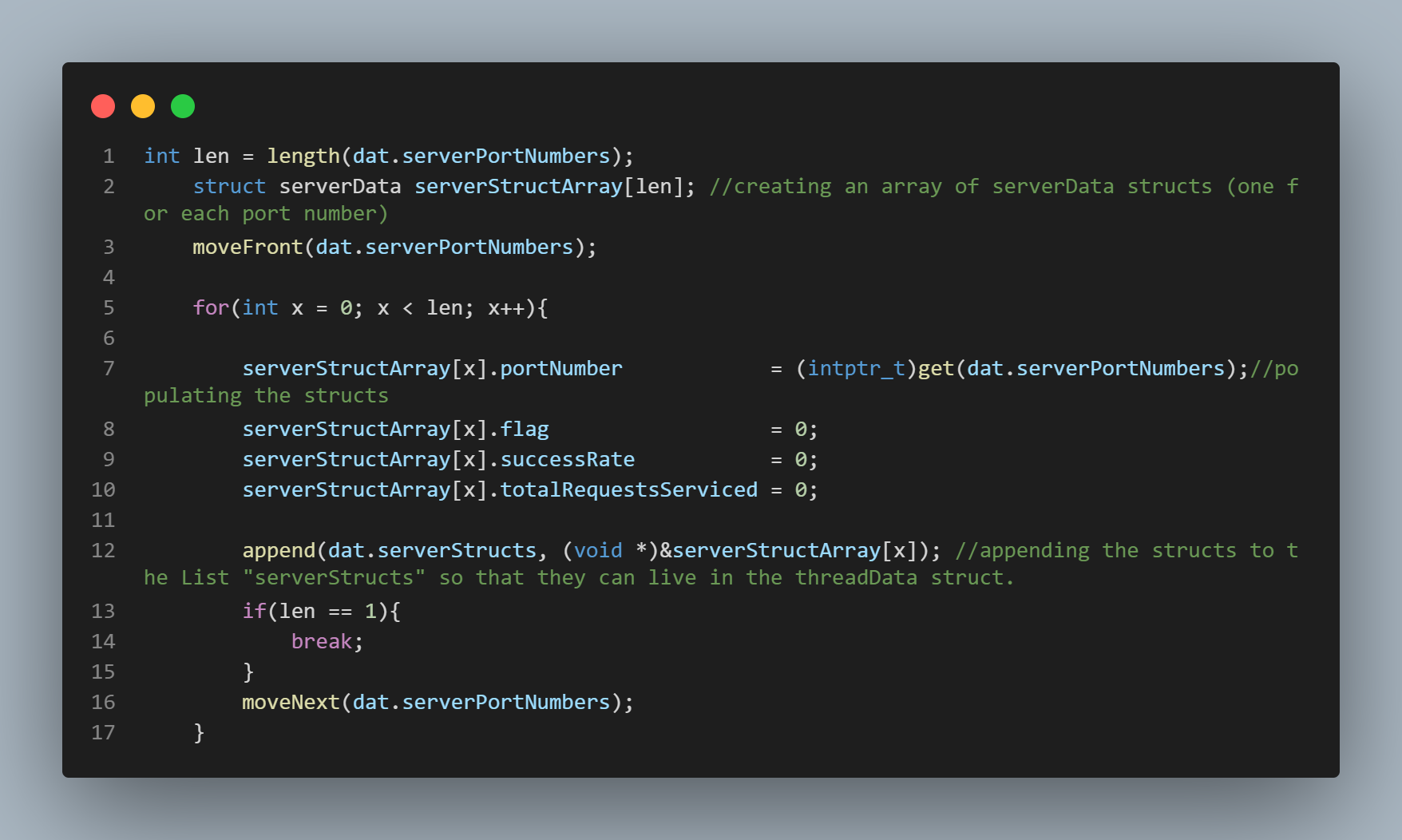

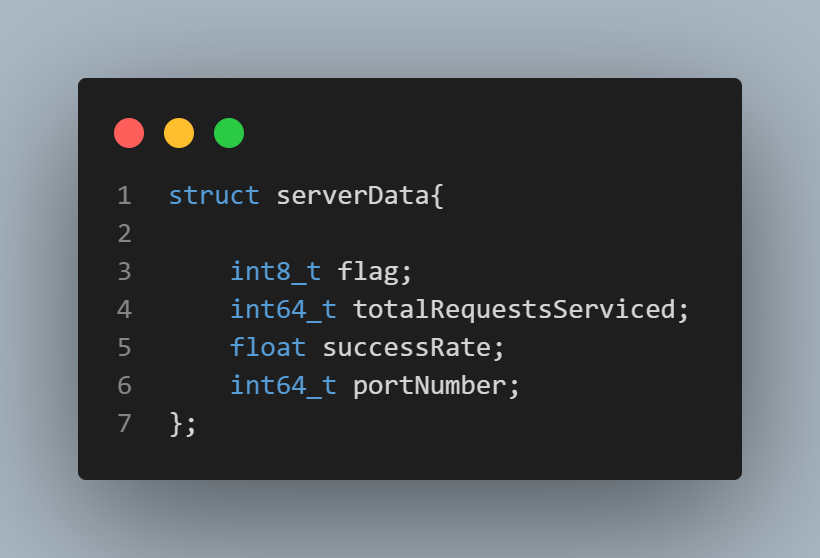

In the top-most picture, the 'serverData' struct is depicted. This struct contains the necessary data fields for the health check function to supply to the hcHelper function, i.e., the health check threads. In the second picture from the top, a section of code from the main function, i.e., the main thread, is depicted. In this code, an array of serverData structs (one for each active server) is created and initialized. Each 'portNumber' of each serverData struct field is populated with the port number of an active server, supplied from the command line, of course. The other fields are initialized to 0.

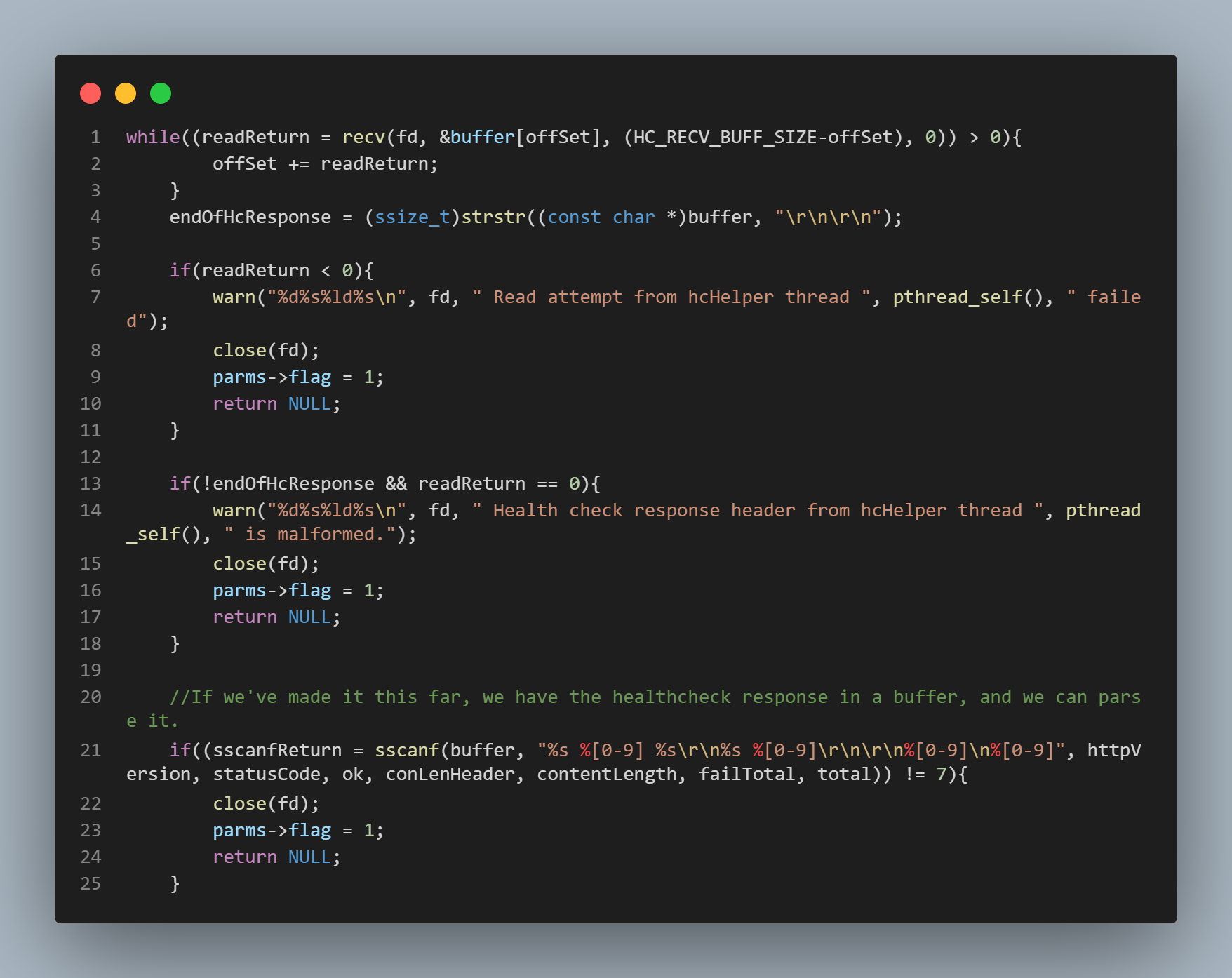

The third picture from the top begins the relevant portion of the hcHelper function itself. We must read the entire response from the server and run some checks on this response to make sure that it is correctly formatted. Lines 1 - 18 in the third picture from the top accomplish this. Lines 21 - 23 perform a final check and also extract the total number of unsuccessfully serviced requests as well as the total number of requests serviced from the server's response. These values are stored in the 'total' and 'failTotal' variables, respectively.

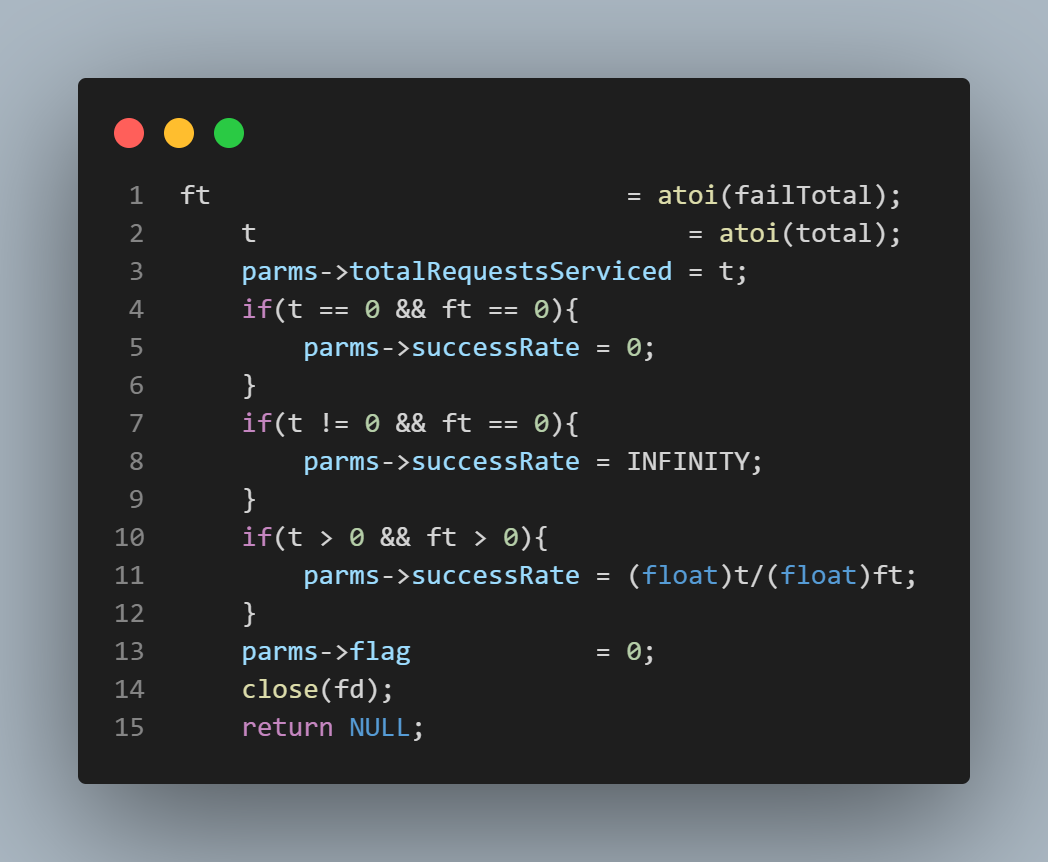

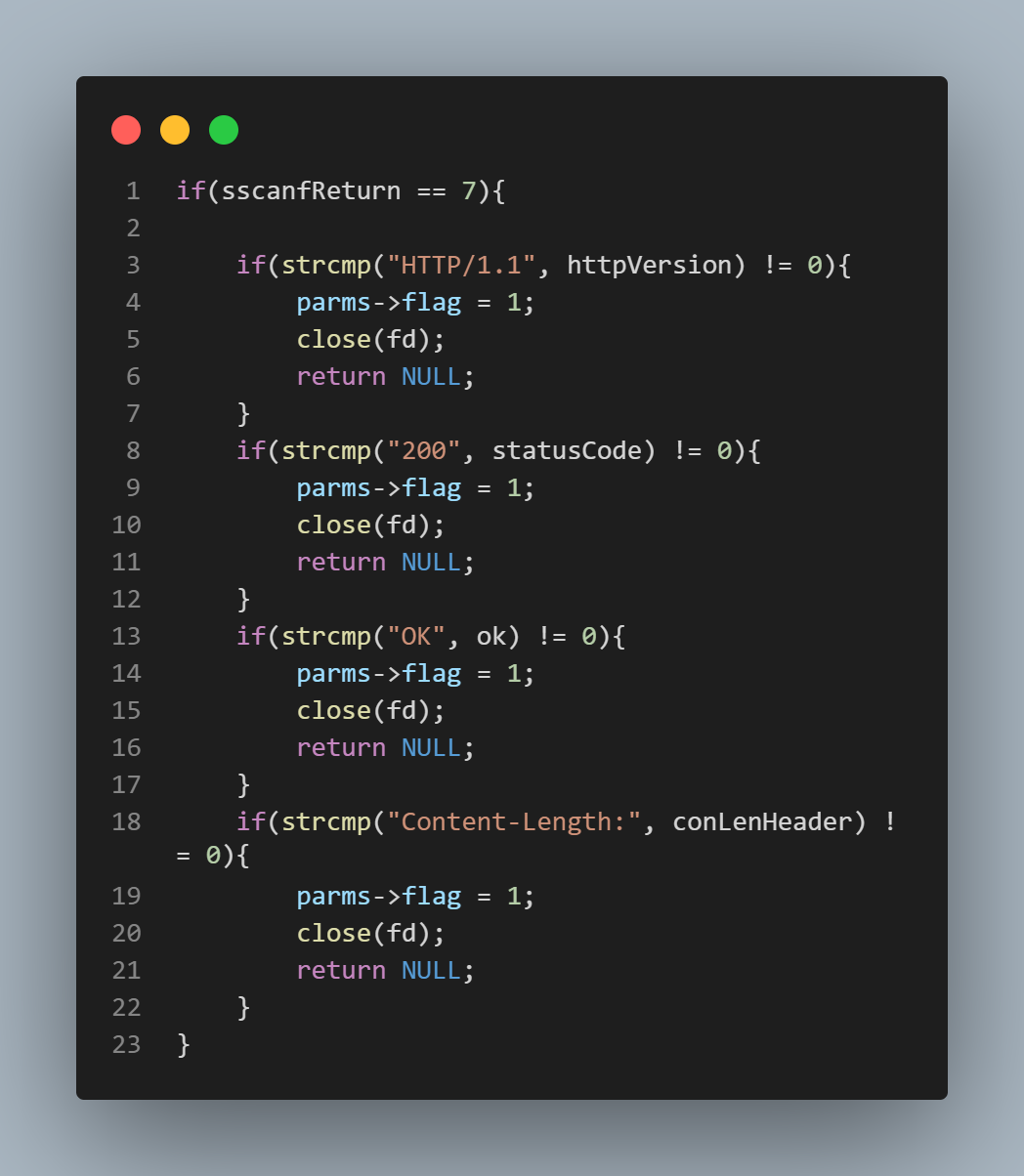

The fourth picture from the top depicts a series of checks on the sub-headers of the server's response. If all these checks are cleared, the total number of requests serviced as well as the total number of unsuccessfully serviced requests are stored in the variables 't' and 'ft', respectively. The 'serverData' struct field 'totalRequestsServiced' is set to 't', and the thread returns to the 'healthCheck' function.

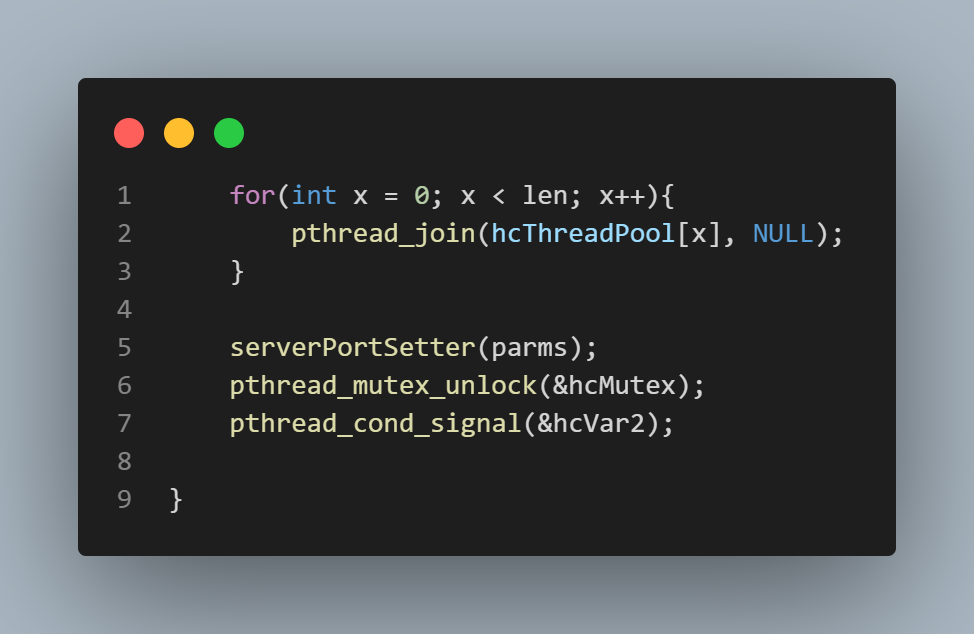

The healthCheck function joins the threads and calls the 'serverPortSetter' function with the entire array of serverData structs as an argument. It is this 'serverPortSetter' function I shall cover in the next section.

• View the full file

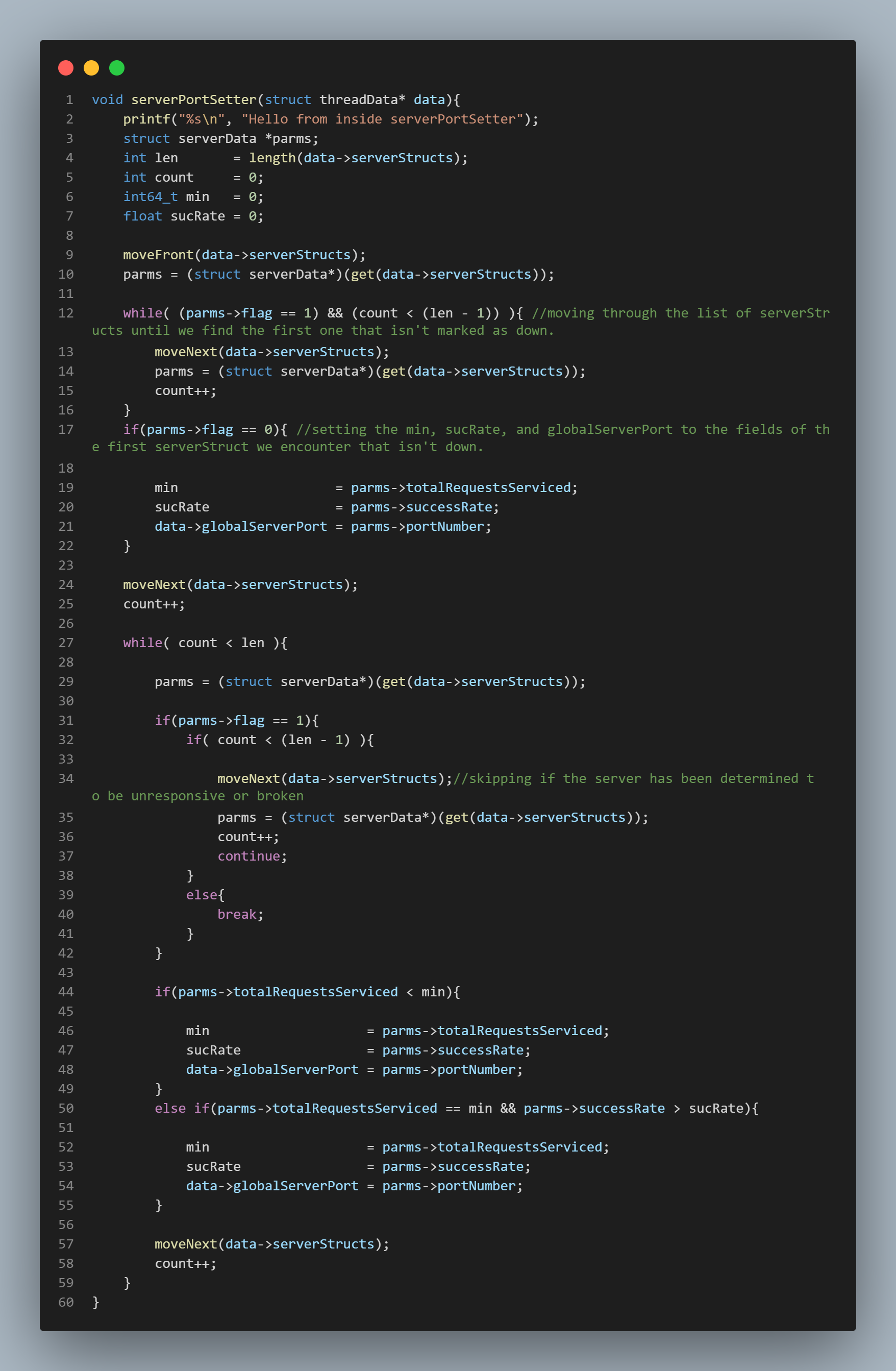

The 'serverPortSetter' function receives the 'threadData' struct which is the universally visible struct. This struct is visible to all load balancer worker threads, and whenever its data fields are accessed, it must be in atomic fashion, i.e., within the confines of mutex locks.The 'threadData' struct contains the array of serverData structs, as well as the 'globalServerPort' variable and other important fields. It is the 'globalServerPort' that all load balancer threads see and channel their requests to, and so it is this field that the 'serverPortSetter' function 'sets' as a result of its algorithm.

The serverPortSetter function's algorithm essentially functions as follows:
It iterates through the serverStruct linked list until it finds the first server that is not marked as down (servers are marked as down by setting a 'flag' variable to 1 if it is determined that they have not responded to a health check request). The algorithm keeps track of the total number of requests serviced by each server as it iterates through the list, and keeps a running record of the minimum of all totals out of all active servers. When the algorithm concludes, it sets the 'globalServerPort' to the port number associated with the server that has been determined to have serviced the lowest number of requests, and it is this port number to which all load balancer worker threads will send their requests.
